Universal Monoblock Subwoofer Power Amplifier

Monoblock Subwoofer Power Amplifier

  1. Mono
  2. 2 dB dynamic head room
  3. Plate & Box configuration
  4. Extremely low distortion levels

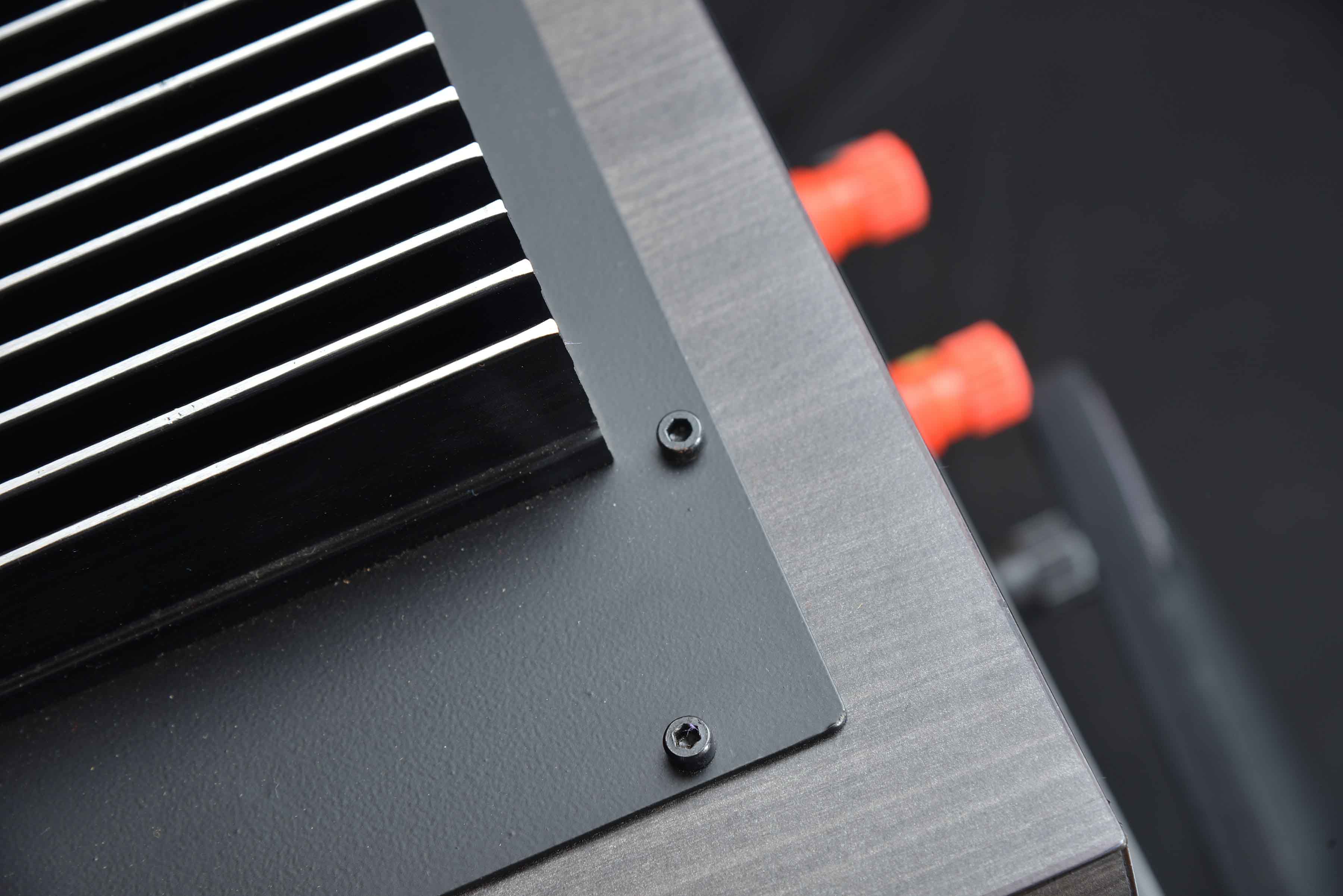

  5. Anodized exposed heat sinks to eliminate the need of a cooling fan

General DescriptionMonoblock Subwoofer Power Amplifier
OUTPUT POWER More than 300 watts @ 8 Ohms / 450 watts @4 Ohms
POWER AMPLIFIER CLASSIFICATION Class AB
INPUTS RCA unbalanced and High level
INPUT IMPEDANCE Unbalanced 47 kOhm
FREQUENCY RESPONSE Less than +/- 0.1 dB deviation 25 Hz - 150 Hz
SIGNAL TO NOISE RATIO More than 100 dB
DISTORTION Less than 0.08% at rated power 8 ohms load, Less than 0.1% at rated power 4 ohms load
FILTER & EQUALISATION Filter: Active 24 dB Butter-worth, variable from 60 Hz to 150 Hz Equalisation; Boost and cut +/- 12 dB
DAMPING FACTOR More than 220
POWER SUPPLY 600 VA; 40,000 uF capacitors
OUTPUT STAGE 8pcs 15A 150W high speed, ultra low distortion, bipolar transistors
POWER CONSUMPTION 30 W in standby switched on
ADDITIONAL FEATURES Speaker soft start & shutdown, short circuit, dc and thermal protection and signal auto detect
HEIGHT (Including rubber feet) 12.2’’ (31 cm)
WIDTH 11.6” (29.5 cm)
DEPTH 4.3” (11 cm)
WEIGHT 8.3 Kg (18.29 lbs)

DISCLAIMER : All products, product specifications and data are subject to change to improve reliability, function or design, without notice
